How Steel Parts Are Made From Drawings to Finished Installation
The structural steel fabrication process is the set of steps used to turn raw steel into beams, columns, and frames that support buildings. It starts with design drawings and ends with steel pieces ready for delivery and install. When clients understand each step, they can plan better, avoid delays, and know what to expect from start to finish.
What You Need Before Starting
Before structural steel fabrication begins, there are a few key items in place. The most important is a full set of approved drawings. These drawings show sizes, shapes, connection points, and load needs. Engineers and architects often prepare these plans.
You also need:
- Project specifications and code requirements
- Final measurements from the job site
- A clear project timeline
- Permit approval if required in your area
If any of this is missing, the job can stall. Clear communication between the client, engineer, and fabrication team helps keep the project moving.
Step-by-Step Structural Steel Fabrication Process
Once plans are approved, the real work begins. Most structural steel fabrication shops follow a clear order of steps.
- Detailing: Shop drawings are created from the original plans. These drawings show exact cut lengths, hole sizes, and weld locations.
- Material sourcing: The right grade and size of steel is ordered from a supplier.
- Cutting: Large steel beams and plates are cut down to match the shop drawings. This may involve saws, plasma cutters, or lasers.
- Drilling and shaping: Holes are drilled for bolts. Plates may be bent or shaped for custom projects.
- Welding and assembly: Pieces are joined together based on the design. Certified welders complete this step.
- Surface prep and coating: Steel may be cleaned, primed, galvanized, or painted to protect against rust.
- Inspection: Quality checks confirm dimensions and weld strength meet code.
- Delivery: Completed components are labeled and shipped to the job site in the right order.
Each step builds on the one before it. If detailing is off, cutting and welding will not line up. That is why accuracy early in the process matters so much.
Common Mistakes Clients Should Avoid
Clients can help a project run smoothly by avoiding a few common errors.
- Sending incomplete drawings
- Making design changes after fabrication has started
- Skipping site measurements
- Choosing the lowest bid without checking experience
Changes after cutting or welding often lead to extra cost and schedule delays. It is better to finalize details during the planning stage. Clear approval on materials, finish type, and connection style helps reduce surprises later.
When to Call a Professional Team
Small steel repairs can sometimes be handled by a local welder. Full structural steel fabrication projects are different. If the steel will carry weight for a building, warehouse, canopy, or industrial structure, you need a qualified team.
You should call a fabrication company when:
- The project involves load-bearing beams or columns
- Engineering calculations are required
- Local building codes apply
- You need custom steel components
Professionals have the tools, certified welders, and inspection process required for safe results. They also coordinate with contractors and inspectors. That level of organization is hard to manage on your own.
What Clients Can Expect During the Project
During structural steel fabrication, clients usually receive progress updates. Many shops provide timelines that show when detailing, cutting, and welding will finish. Larger projects may involve site visits or coordination meetings with general contractors.

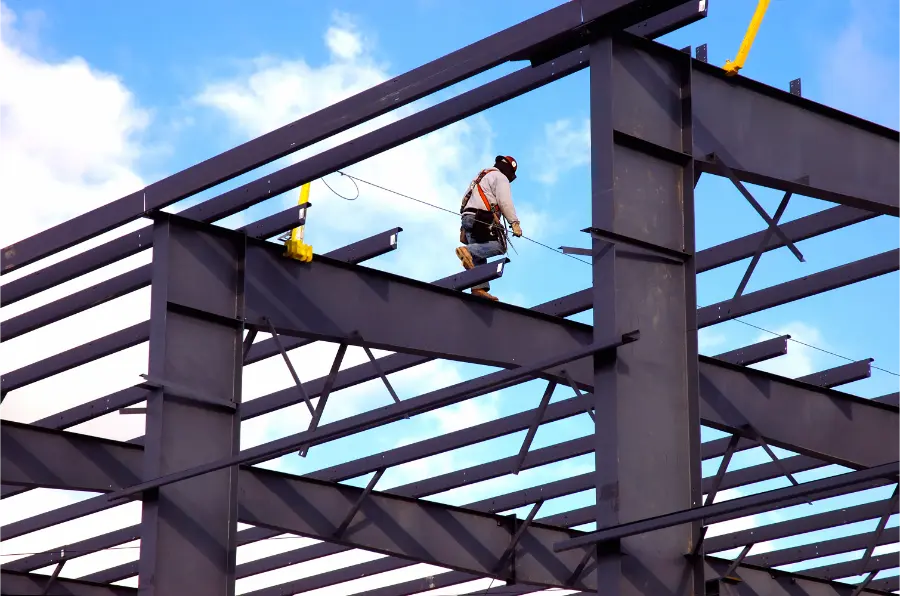

Delivery is scheduled to match the construction schedule. Steel is often labeled by section so installation crews can work faster. Good planning keeps cranes, crews, and materials working together without long delays.
After installation, final inspections confirm the steel matches the approved design. At that point, the structure is ready for the next phase of construction.
